Products

Special transformer

Rectifier transformer

Overview

DC power supply is widely applied in metallurgy, electrochemistry and transmission industries and in industrial field, most of the DC power supplies are abtained by transforming AC power supply to the required DC power supply through rectifier transformer and rectifier elements. There are two funcions of rectifier transformer: one is to change voltage and the other is to change the number of phase. Multi-pulse waves can be formed through phase shifting, so as to improve power quality and prevent power grid from being polluted by harmonic wave.

Execution standard

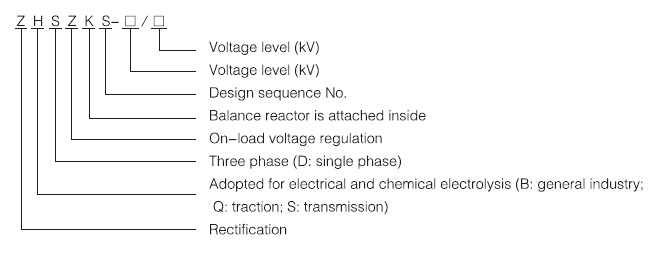

Model
Performance
Parameters
Appearance

- GB1094.11-2007 Power transformer
- J13/T 8636-1997 Power transformer
Null

Rectification transformer, phase displacement transformer and loaded high-voltage transformer
Model	Side voltage (kV)	Conn. Symb. No.			Rated volume (kVA)	Rated current		Regulating range (%)	Regulating grade
Model	Side voltage (kV)	Adjustment	Action	Three times	Rated volume (kVA)	Voltage (V)	Current (A)	Regulating range (%)	Regulating grade
ZHSTB-6000/10	10	2500	3600		Y,a-Y-Y,Y ⊥ λ	130	150000		27
ZHSTB-8000/10	10	3600	4500		Y,a-Y-Y,Y ⊥ λ	180	160000		27
ZHSFTK-8000/6	6	8000	8000		Y,ao-Y/Y ⊥ λ,Y ⊥ λ △ Y ⊥ λ,Y ⊥ λ	310	110000		7
ZHSFTK-9000/35	35	8000	9000	2000	Y,ao-Y,dll,d5 D,dll,d5	525	80000		10
ZHSFPTK-10000/10	10	4400	7000	3150	Y,ao-Y/Y ⊥ λ,Y ⊥ λ △ Y ⊥ λ,Y ⊥ λ	150	3150000		27

Rectification transformer adopted for electrical and chemical engineering
Form volume (kVA)	Observation volume SLN of rated (kVA)	Valve side			Impedance (%)
Form volume (kVA)	Observation volume SLN of rated (kVA)	Rated voltage (V)	Rated current (A)	Winding quantity	Impedance (%)
ZHS-800	614	138	2570	1	5-8
ZHS-1250	926	208
ZHS-2000	1460	328
ZHSSP-3150	2301	517			8-12
ZHSSP-4000	2965	333	5141
ZHSSP-5000	3678	413
ZHSSPZ-6300	4604	815
ZHSSPZ-8000	5832	835
ZHSSPZ-10000	7257	855
ZHSSPZ-12500	9204	411	13056	1,2	8-12
ZHSSPZ-20000	14744	652	13056	1,2
ZHSSPZ-25000	18586	526	20400	2,4	12-16
ZHSSPZ-31500	23956	339	40800	2,4	12-16

ZB, ZN series for general industry and electrolysis and metallurgical industries
Model	Rated volume (kVA)	Rated volume			Mark No. of connection group	Consumption (kW)		Excit. Curr. (%)	Impedance (%)
Model	Rated volume (kVA)	High voltage	Medium voltage	Low voltage	Mark No. of connection group	Iding	Loading	Excit. Curr. (%)	Impedance (%)
ZHSZK-630/10	630	1000,6000		11× √ 3	Y/Y ⊥ λ	1.4	8.3		6
ZHSZK-1000/6.3	1000	6300		246	Y/Y ⊥ λ
ZHSTK-1200/6.3	1200	6300±5%		45	Y/Y-λ
ZBS-1600/10	1600	6300±5%		345	D.Yn11,D.do				7.5
ZHSTK-1800/35	1800	35000		55.5-83.5 27 Level	Y △ /Y-λ,Y-λ	8.2	29.8	2	7.1
ZHSTK-2000/10	2000	10000±10%		77-134 27 Level	Y/Y ⊥ λ Y △ /Y ⊥ λ	3.54	18.32		8.0
ZHSTK-2000/35	2000	35000		125-250 27 Level	Y/Y ⊥ λ
ZHSTK-4000/35	4000	35000		100-175 27 Level	△ /(Y)/Y ⊥ λ,Y ⊥ λ	6.93	42.87		8
ZHSTK-4400/10	4400	10000		6.8	Y/Y ⊥ λ,Y ⊥ λ
ZSTK-5100/10	5120	10000			Y/Y ⊥ λ
ZHSSP-5900/35	5900	35000	6000	268-311	D.Yn,D.Y5	7.72	64.62		7
ZSTK-6300/35	6200	35000		565	△ /Y ⊥ λ	8.2	69.3		9.38

Null
